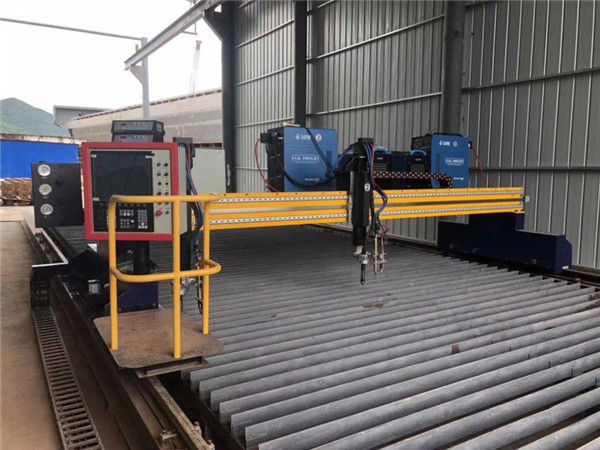

Portal Plazma Kesme Makinası 3mx8m
Temel bilgi


Model NO.: 3MX8M
Kesme Gazı: Oksijen + Asetilen veya Propan
CNC System: Beijing Start CNC
Motor and Driver: Stepper&Nbsp;Motor and Driver
Yazılım: Fastcam Software
Moving Precision: 0.01mm Per Step
Drive Mode: Linear Guide and Rack Gear
Cutter Torch Cooling Method: Air Cooling or Water Cooling
Current: 30-400A Plasma Cutter Source
Lead Time: 7 Days
Nest Software: Fastcam
Specification: 3000X8000MM



Özellikler


1.Allwelded structure, Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting,to assure cutting speed and quality.
2. Machine with lubrication system, auto fume extraction system and dust proof. 3.The set-up is very simple, all kinds of CAD graphics can be read directly by our system trough U-disk.The software can be edict graphics automatically.
4.Collocated Udisk interface and cutting code auto converting software for CAD drawing ,CAD drawing can be input directly into the cutter through U-disk.
5.Tips for each operation is displayed at the screen at any moment ,so operators can use our system without being trained or reading the instructions.
6.Collocated indicator lights for various hitches.Hitch diagnosing is clear just at a glance and the maintenance is convenient and quick.
7.There are necessary keys for the movement control in the torch carriage ,so the operator can easily move the torch to the right spot.
8.With break point or interruption of power ,memory function.

Parametre


isim Gantry CNC Cutting Machine
model3000×6000×13000×6000×1A3000×6000×1+1A
Cutting typesOxy-fuelPlazmaOxy-fuel and Plasma
StructureGantry, dual drive
Track span & Guide rail3000×6000mm
Effective cutting size2400×4500mm
transmisyonLongitudinal and Transversal main trolleys: rack &  pinion                      Transversal slave trolley: steel belt
Tube TransmissionTransversal: Industrial plastic drag chain;

Longitudinal: Hanging pulleys or earthing drag chain

Kesme kalınlığı6-150 mm mild steel



2-40mm mild steel, SS, Brass, Aluminum, etc.(Depends on plasma  capacity)Oxy-fuel 6-150 mm;

Plasma: depends on plasma capacity;

Torch No.1 (2 is option)1 (2 is option)2
Torch height control(THC)Motorized torch control (CAP auto THC is option)Arc voltage auto THC



Arc voltage auto THC for plasma cutting

Motorized torch control for oxy-fuel cutting
