ce iso belgelendirme ve metal levha için yeni durum plazma kesme makinası
Hızlı Ayrıntılar


Durum: Yeni
Gerilim: 220V / 380V
Anma Gücü: 1000W
Boyut (L * G * Y): 3880 * 2150 * 2000 mm
Ağırlık: 1500kg
Belgelendirme: ce iso
Garanti: 2 yıl
Sağlanan Satış Sonrası Hizmet: Yurtdışı hizmet amaçlı kullanılabilir makine mühendisleri

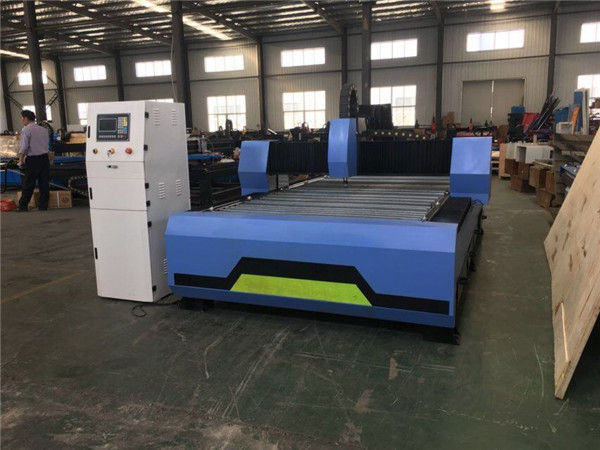

Product name: ACUT-1530 plazma kesme makinası
Uygulama: metal kesme
Motor: step veya servo
Working area: 1500*3000*200mm
Software: Artcam
Kontrol sistemi: başlat kontrol sistemi
Color: Purple&white or customized
plasma power: 63A /100A/120A/200A
flame cutting head: optional
Kesme malzemesi: Metal Paslanmaz Çelik Karbon Çelik Alüminyum



Ürün Açıklaması


Apply to industry and materials
Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boatbuilding, electrical accessories, board cutting

Functional Characteristics

Fast cutting speed, high precision and low cost.
2. with firm and reasonable structure. The machine is easy to operate and durable for use.
3. Kesim insizyonu ince ve düzenlidir ve ikinci işlemden kaçınabilir.
4. High configurator CNC system, auto arc-striking and stable performance.
5. Together with other advertising equipment’s, they form an advertisement producing line which completely solve the problem of traditional manual mode.
6. It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision. (USA power is optional).
7. It supports the standard G code router files that made by software’s such as ARTCUT, CAXA, ARTCAM and TYPE3. Converted by certain software, it can also read DXF file that out of AUTOCAD, The control system, adopting U flash disk to change the processing files

Performance Index


Makine modeli

ACUT-1325 Plasma

ACUT-1530

Çalışma alanı

1300 × 2500mm

1500 x 3000mm

Processing thickness

0.5-50mm

Current Plasma

63A, 100A, 120A, 200A

Kesim hassasiyeti

± 0.5mm

Orientation precision

0.05mm

Hız kesmek

0-8m / dakika

Travelling speed

0-15m/min

Güç

8.5KW

Giriş gerilimi

380V

Power frequency

50HZ

The mode of file transfer

USB arabirimi)

Çalışma formu

untouched arc striking



Industrial Plazma Kesim Makinesi


Apply to industry and materials
it is used to cut iron plate, steel plate, aluminum plate, titanium plate, copper plate and other metal plate

Functional Characteristics

If the machine adopts American Hyperthermia power supply, START control system and auto torch-height adjuster. It can cut metal of 3-50mm thickness.

Packaging & Shipping


1. Standard plywood case, its compressive strength and bearing quality is better.

2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.

3. when importing, the plywood case is with fumigation-free, the procedure is simple.

4. Delivery Detail: within 7-14 days after received your payment
